Offering a wide range of connection options, Hera EV charger is remotely accessible and manageable. Hera EV charger is an ideal solution to share within public spaces such as, offices, public housing areas, car parks and many more. Its OCPP-based structure offers a manageable network solution to licensed charging network operators and certified location providers.
The various connectivity options make remote access easier, giving you greater control over your EV charger. Depending on the location and infrastructure, you can choose Ethernet, WiFi, or Bluetooth connections. You can carry out remote charging operations and view your charging details. These options reduce installation costs and provide greater flexibility for charge point operators.

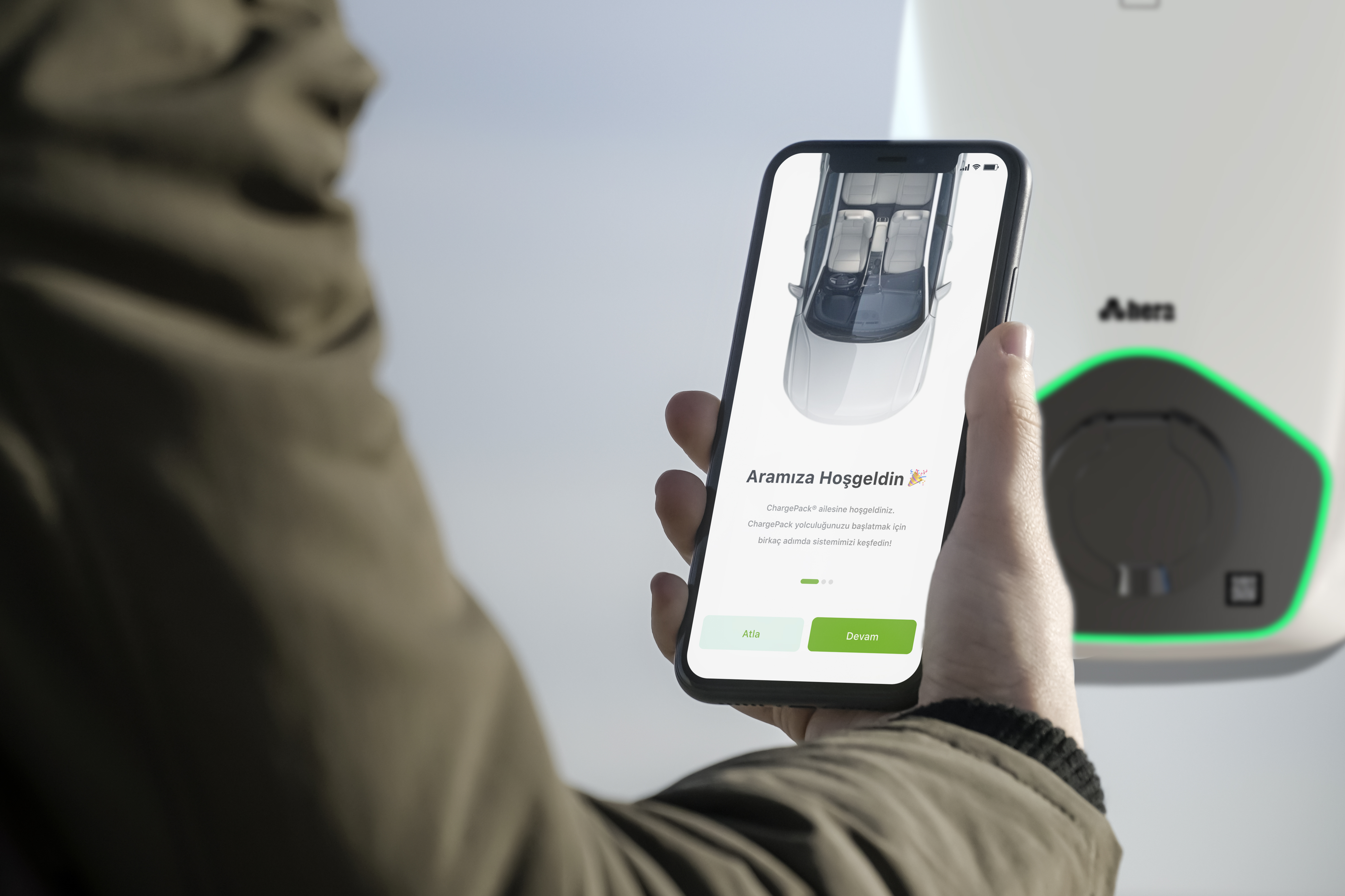

With Hera Charge app, you can access your EV charger remotely. In addition to individual use, you can share your EV charger in common areas. The app allows you to create users, start and stop charging, and view your charging history. You can also set a charging schedule to take advantage of favorable energy tariffs. Stay updated with mobile notifications.
Hera EV charger communicates using the OCPP 1.6j version. It is compliant with standards for commercial use and due to its innovative technology, can be remotely upgraded to OCPP 2.0. This protocol, used for remote access to your EV charger, also facilitates dynamic load management.
For charge point operators, an optional MID meter is available, offering high precision and reliability in measurement standards, along with an Emergency Stop Button that can cut power in critical situations.
Dynamic load management is crucial for making more efficient use of your electrical infrastructure in shared spaces. In areas with multiple EV chargers, OCPP-based dynamic load management automatically adjusts charging power based on the number of vehicles, allowing multiple chargers to operate simultaneously without a high power demand.
Hera EV charger is built to withstand harsh weather conditions and meets IP55 and IK10 durability standards. It delivers high performance in both hot and cold climates, with an operating temperature range from -40°C to +50°C.

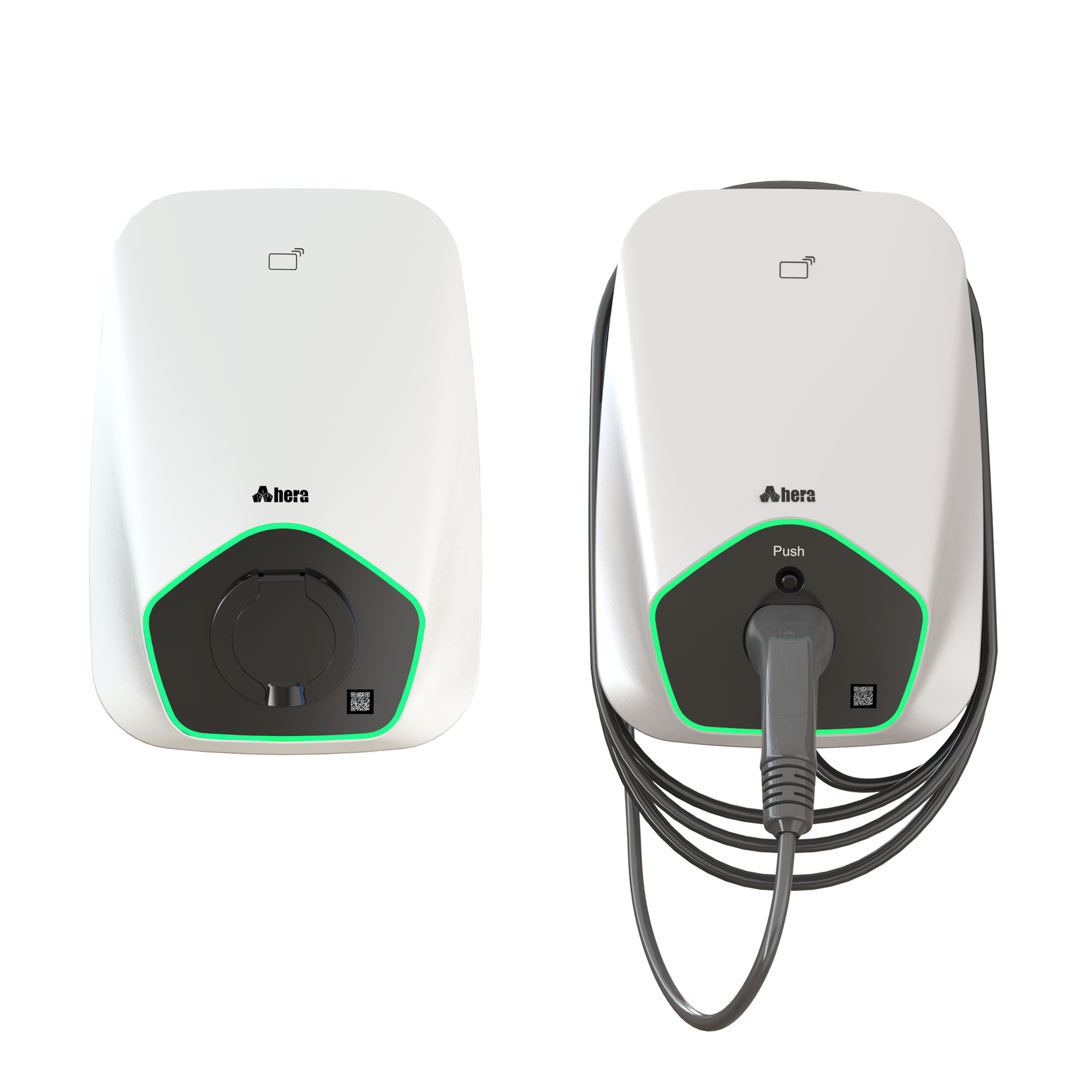

It's a design you can use for your EV chargers without additional cables, it's external design is suitable for cable wrapping and internal socket holder. The locking mechanism on the socket holder prevents it from falling on its own.
Hera EV charger features a pentagonal LED design that makes it easy to monitor the charging status from any angle. The design is inspired by the Hera logo. Our unique LED design is a registered industrial design with the European Patent Office. The Pentagon Status LED illuminates in various colors to provide real-time alert messages to the user.
Hera EV charger, which has high resistance to external conditions, maximizes resistance to high temperatures and safety with its double-layer Polycarbon UL 94 V0 body structure. It has an IK10 level impact protection safety certificate.
Hera EV charger can be installed practically, quickly and safely in as little as 10 minutes, with the connection panel on the back, without opening the main body.

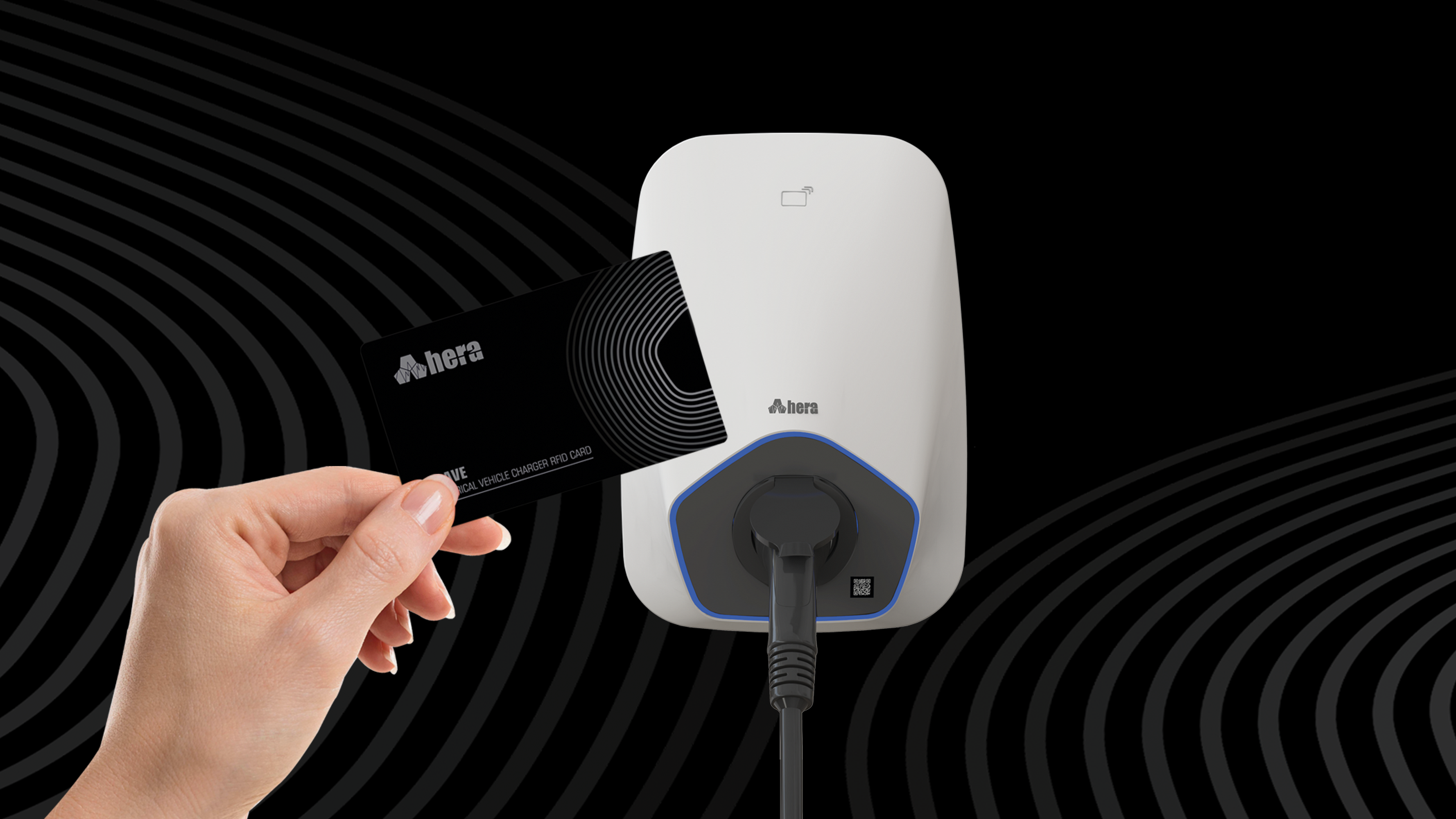

Hera EV charger is offered with 2 Slave (user) and 1 Master RFID cards, which makes the use in common areas more safer and unauthorized persons are prevented from charging.
Activate the Plug & Play feature for standalone areas to start charging quickly and easily without the need for any authorization protocol.
Hera EV charger is compatible with all electrical infrastructures and offers adjustable power output with 1-phase and 3-phase connection options. It can deliver a maximum power output of 7.4kW in 1-phase and 22kW in 3-phase, and it can be safely used at lower power levels as well.
Even if your electrical infrastructure is not suitable, the internal phase detection system allows you to use your 3-phase EV charger with a single-phase infrastructure. This system operates automatically by scanning the grid connection when power is first supplied, determining the appropriate mode of operation. No site survey is required for installation, reducing your costs.
Hera EV charger is equipped with built-in protection against overcurrent, undervoltage, overvoltage, short circuits, high temperatures, grounding issues, and transient voltage spikes, ensuring safety at all times. Additionally, it includes AC 30mA and DC 6mA RCD leakage current protection systems.
Hera EV charger has successfully passed all relevant tests conducted by third-party, EU-certified testing laboratories. It holds certifications in EMC (Electromagnetic Compatibility), LVD (Low Voltage Directive), CE, RoHS, and meets the IEC 61851 standard. It also boasts a minimum IP54 protection rating and IK10 impact protection rating.
We provide sustainable, efficient and high-quality EV chargers, offering a 3-Year Warranty.
Wide Range of Connection Options
OCPP Based Communication
MID Meter and Emergency Button
Dynamic Load Management
Charging with RFID Card
Plug & Play Feature
Mobile Application Support
7.4kW and 22kW Adjustable Maximum Power Output
Automatic Phase Detection System
Offering a wide range of connection options, Hera EV chargers are remotely accessible and manageable. It is an ideal solution for sharing the EV charger in many areas such as public housing, business centers, parking lots and more. The OCPP-based structure offers a manageable network solution to licensed charging network operators and certified hosting providers.
Cable Organizer Functional Design
Fully Adaptable to Extreme Weather Conditions
Highly Visible Pentagonal LED
Double Layer Polycarbonate Body
Easy Installation Without Opening the Body
